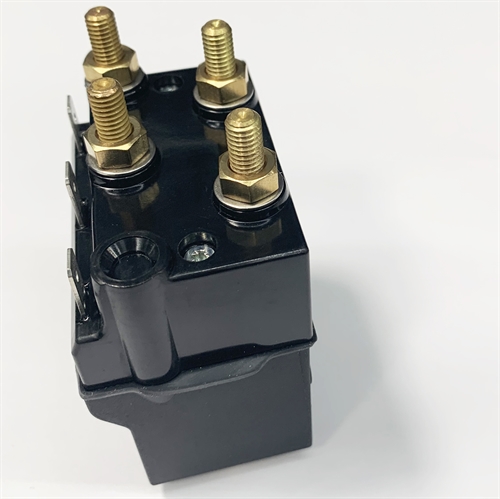

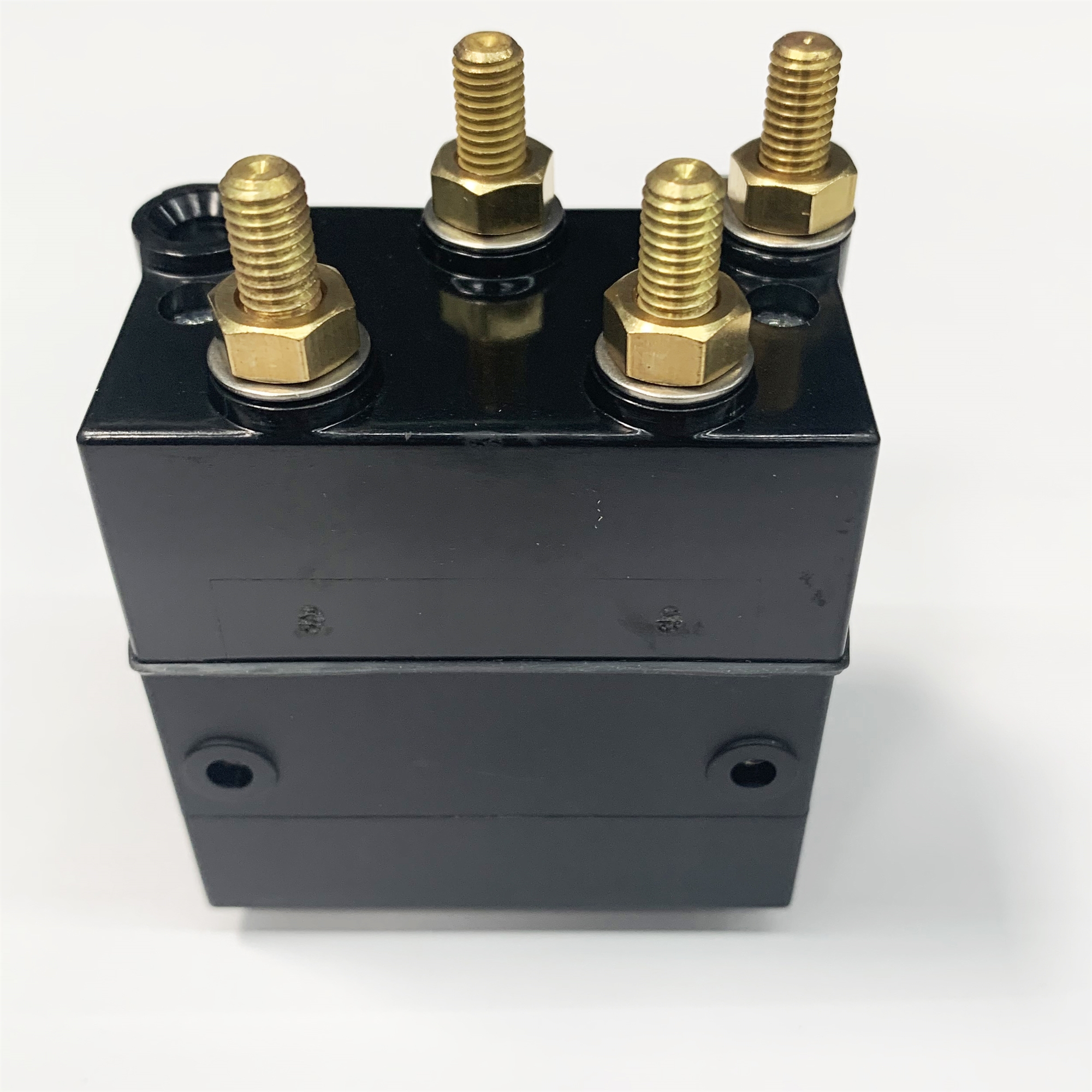

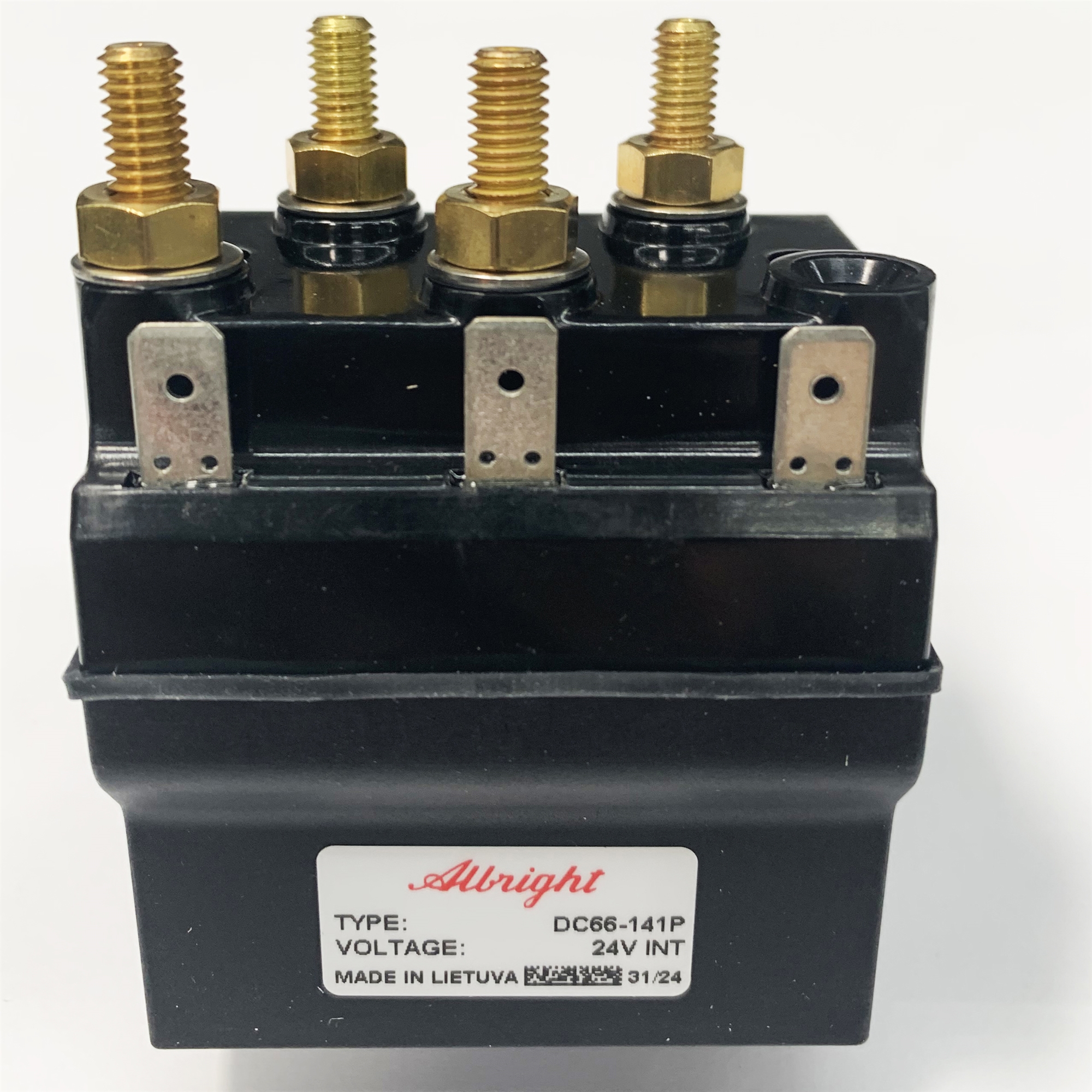

Albright DC Relæ med Beslag
DC66-141P
|
Device Type
|
|
|
Voltage
|
24V D.C.
|
|
Coil Type
|
Very Intermittent
|
|
Amps
|
80A.
|
|
Coil Resistance (Ohms)
|
31
|
|
Pull-In Voltage (V)
|
14,5 Max.
|
|
Drop Out Voltage (V)
|
6.0 Max.
|
|
Coil Power Dissipation (W)
|
15,58
|
|
Typical Pull-In Time
|
|
Typical Voltage Drop Per Pole
across New Contacts at 80A
|
|
|
Operating Ambient Temperature
|
|
|
Protection
|
IP66
|
|
Weight
|
|
NO BRACKET AND SCREW FITTED.

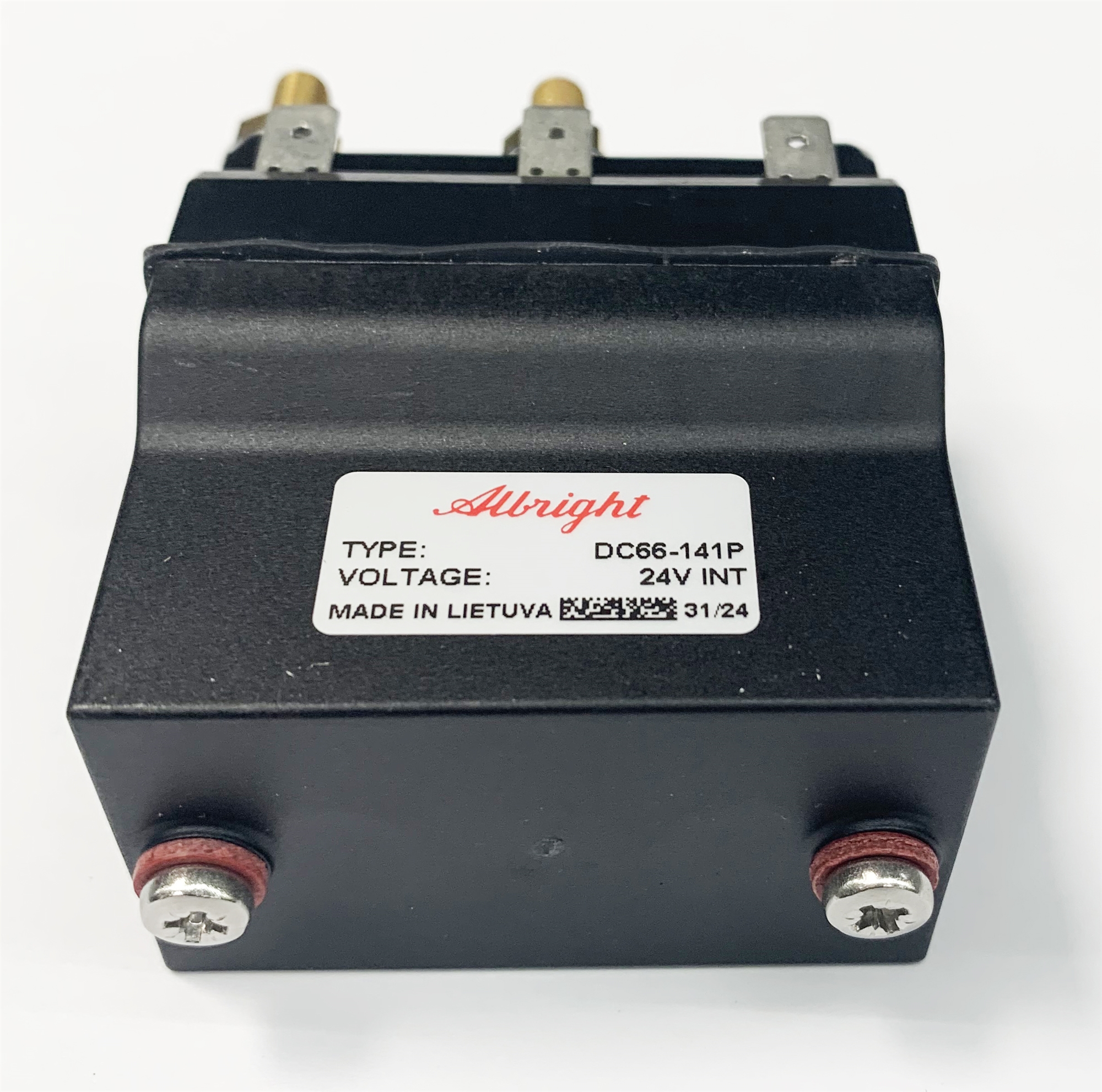

BOTTOM COVER FITTED WITH VACANT HOLES AT REAR.

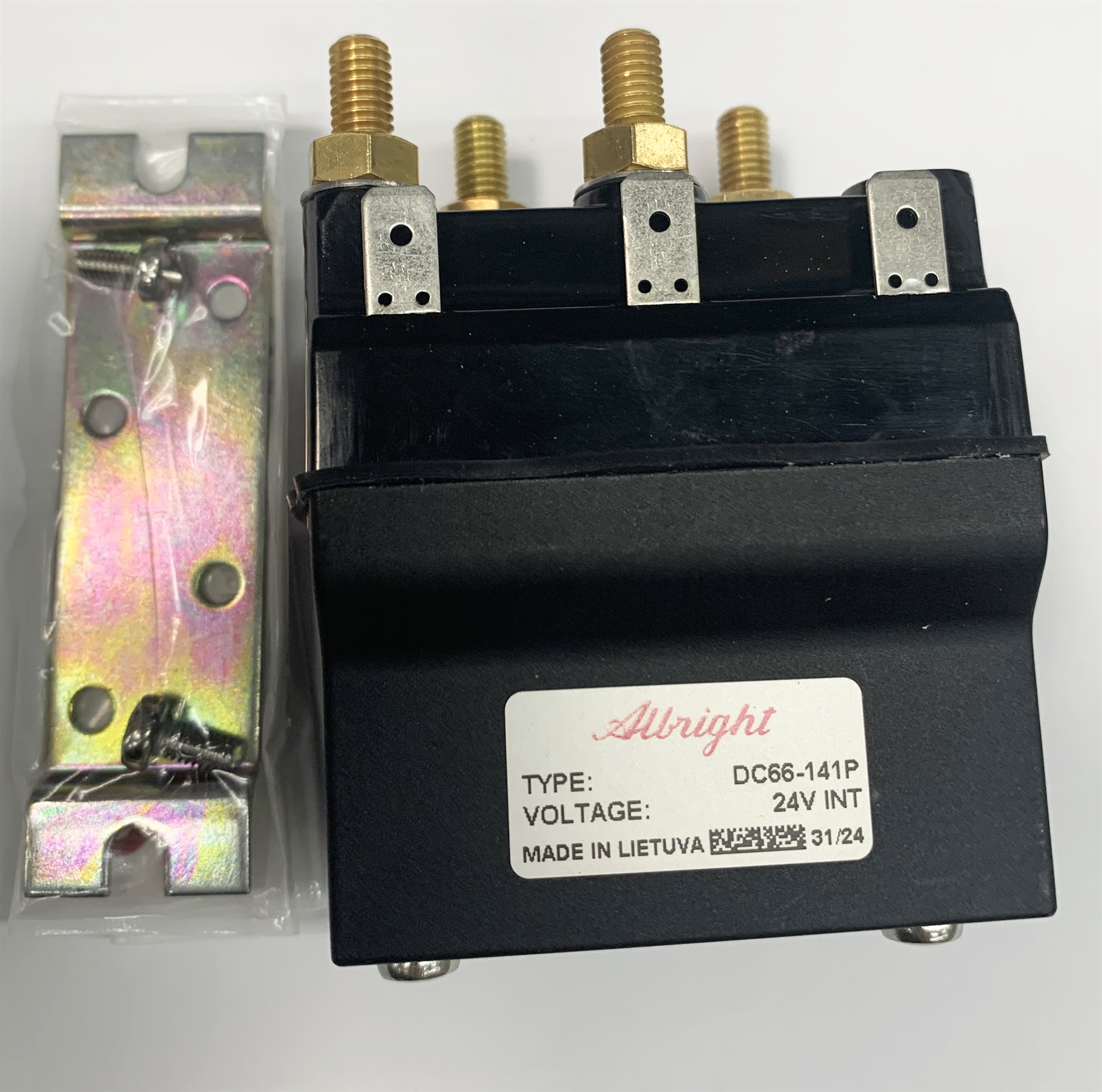

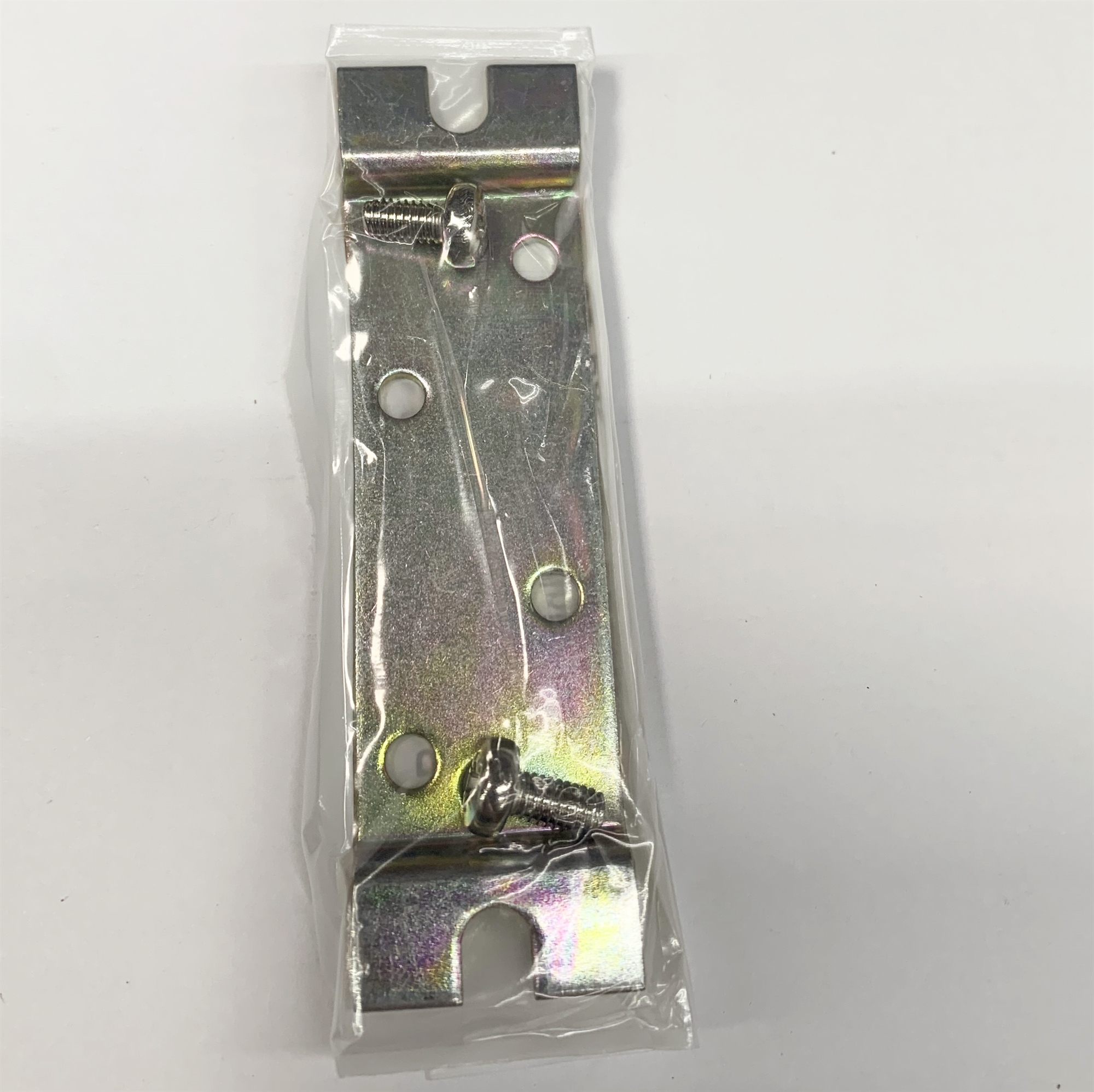

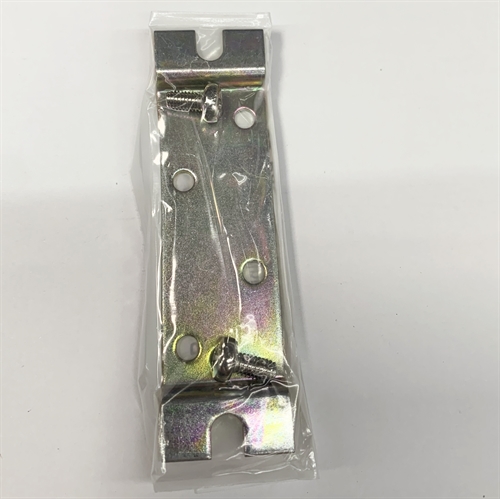

HARDWARE KIT SUPPLIED WITH BRACKET MOUNTING SCREWS.
VERY INTERMITTENT COIL, MAX 25% DUTY.
